Description

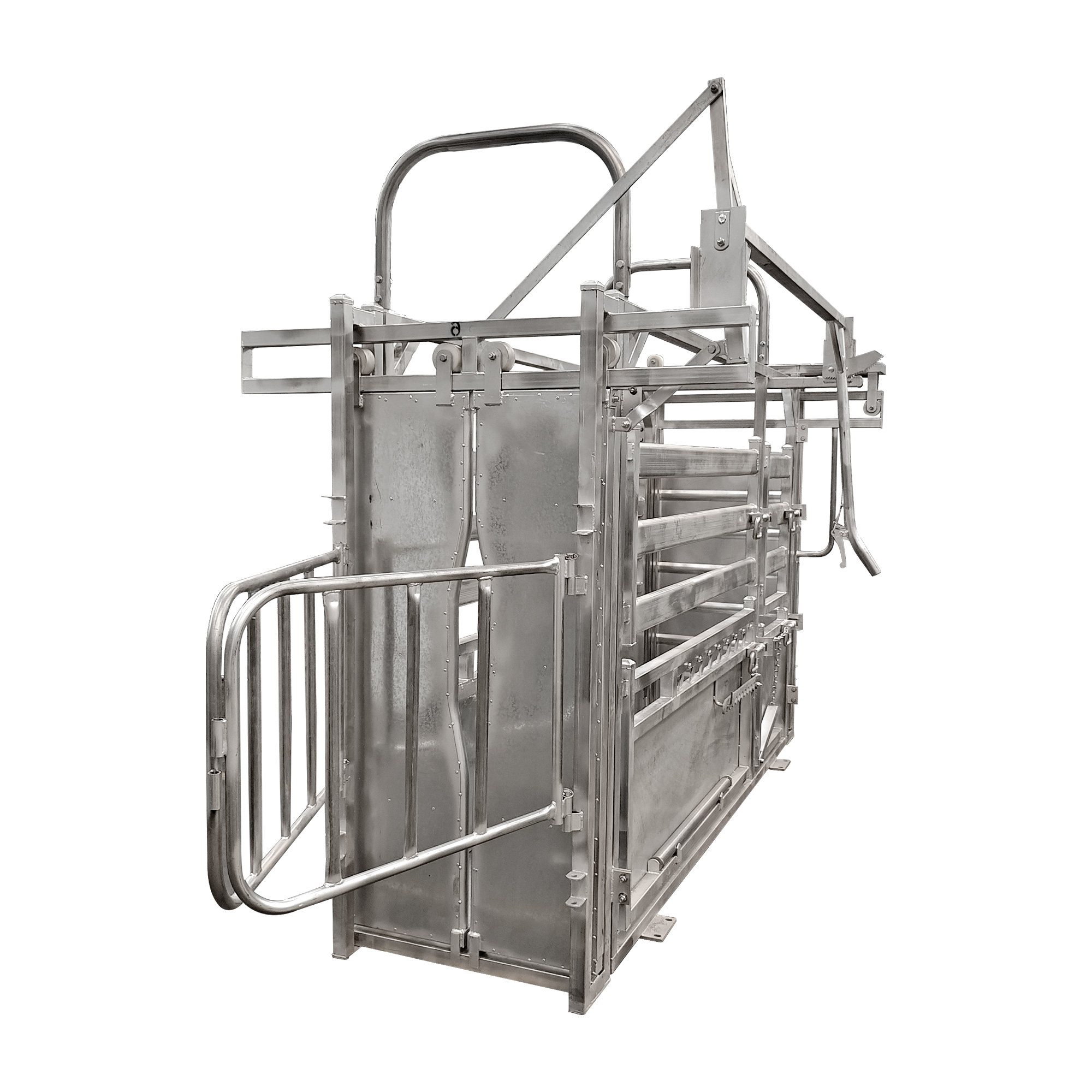

Vet Cattle Crush Premium – Left or Right Operation Options

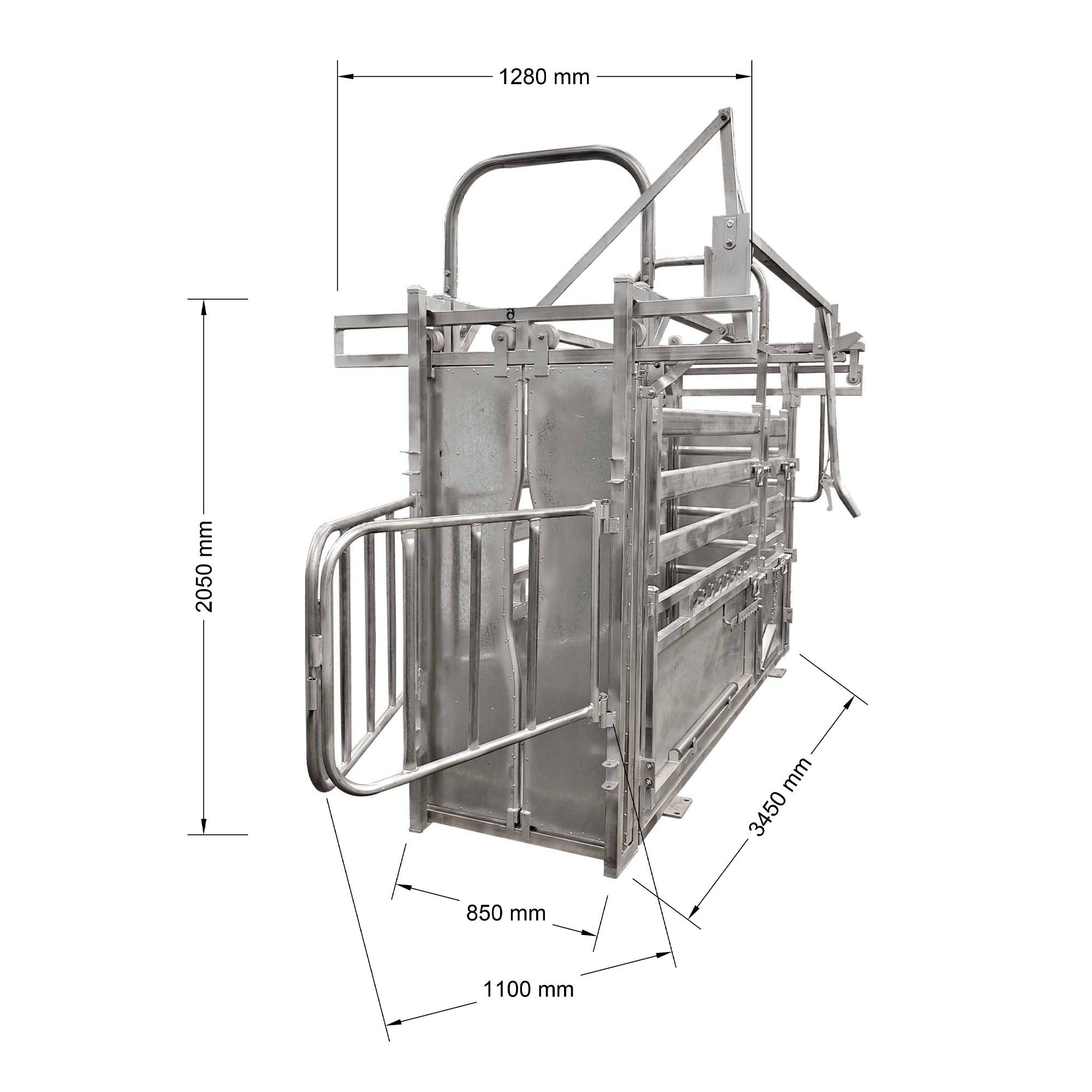

• 2.05m high x 3.45m long x 0.85m wide
• Manufactured from galvanised steel and the welds painted
• 1 long hander manual head bail, 2 sides and 1 sliding gate
• Side panels with doors : 2.95m long x 2.05m wide
• Headbail: 2.05m high x 1.28m wide
• Sliding gate: 2.25m high x 1.28m wide
• Vertical tubes are 50x50x2mm
• Horizontal rails are115x42x2mm
• Round pipes are 48mmO.Dx1.6mm
• Galvansied sheet 1.6mm thick
• Weight is about 500kgs/set
