Description

Cattle Loading ramp

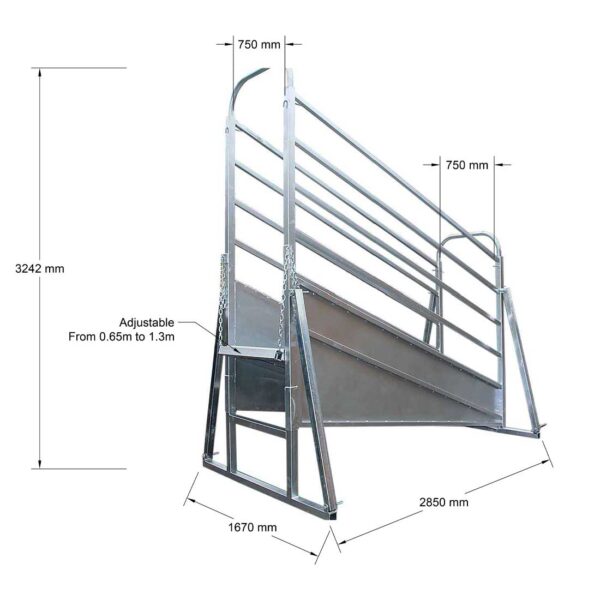

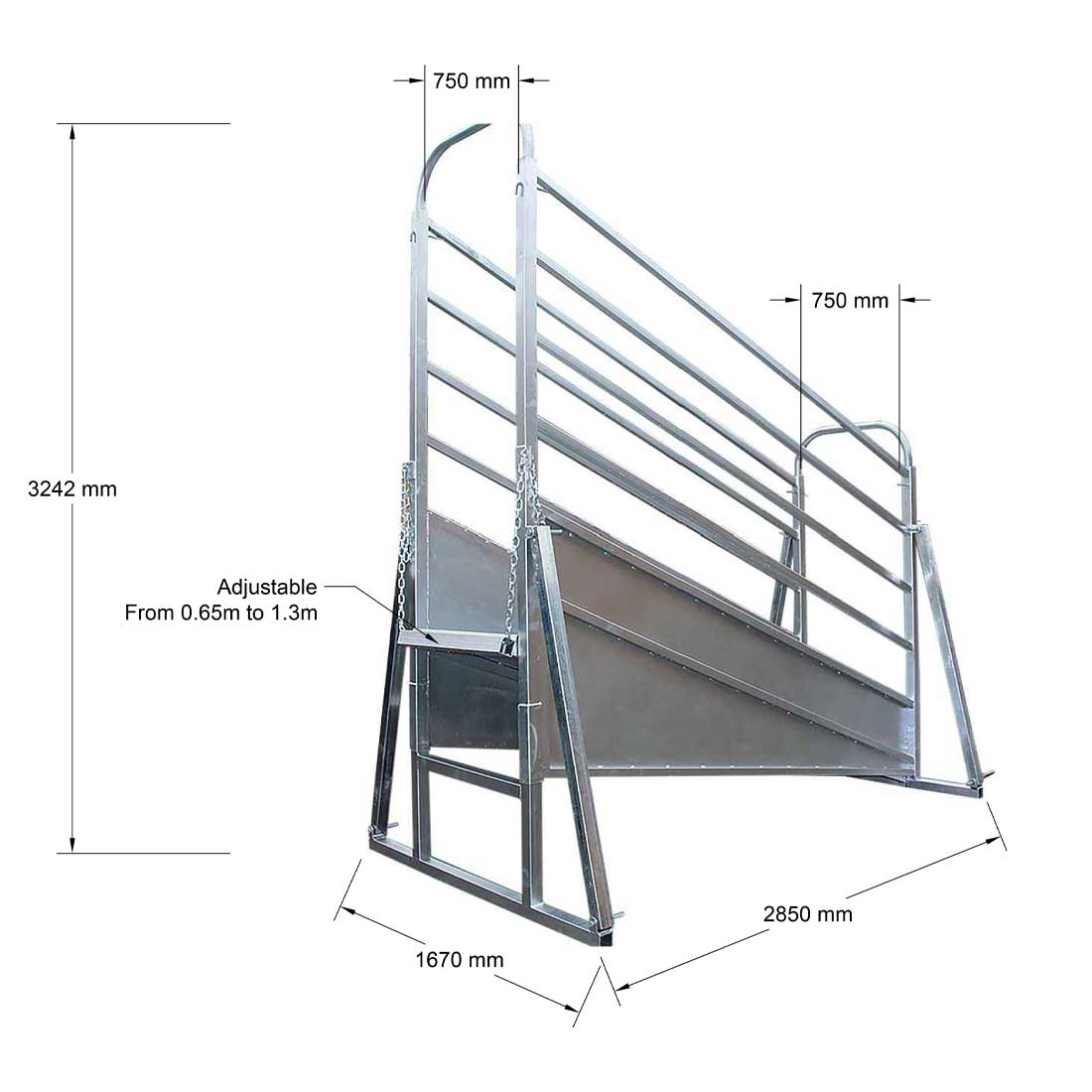

• 3242mm highx2850mm longx750mm wide (750mm wide internal clearance)
• Manufactured from galvanised steel and the welds painted
• Vertical frame tube 60x60x2mm
• Top Side long tube 40x40x2m
• Side galvanized sheet 1.6mm
• Bottom sidelong tube 60x60x2mm

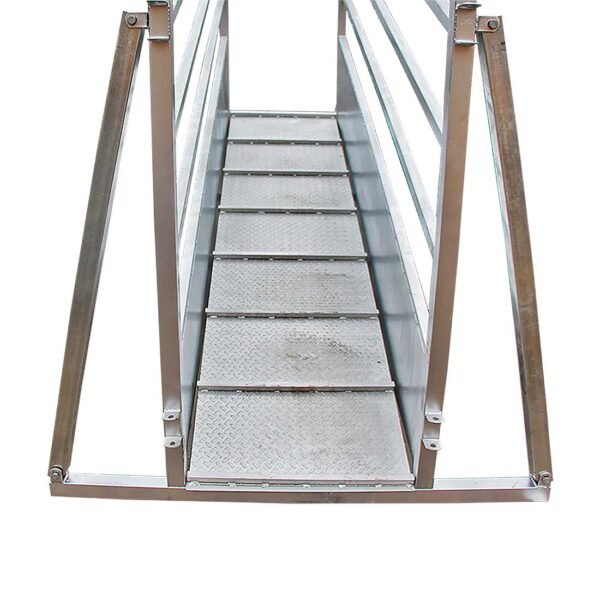

• Galvanized footboard 2mm thick
• With Frame tube 50x50x2mm, 40x40x2mm and 25x25x2mm tubes welded on the footboard.
• U lugs: 100x70x4mm, pins on lugs
• Weight is about 400kg/set
• Adjustable height from 0.65m to 1.3m high
• Weight capacity : 1000kgs
