Description

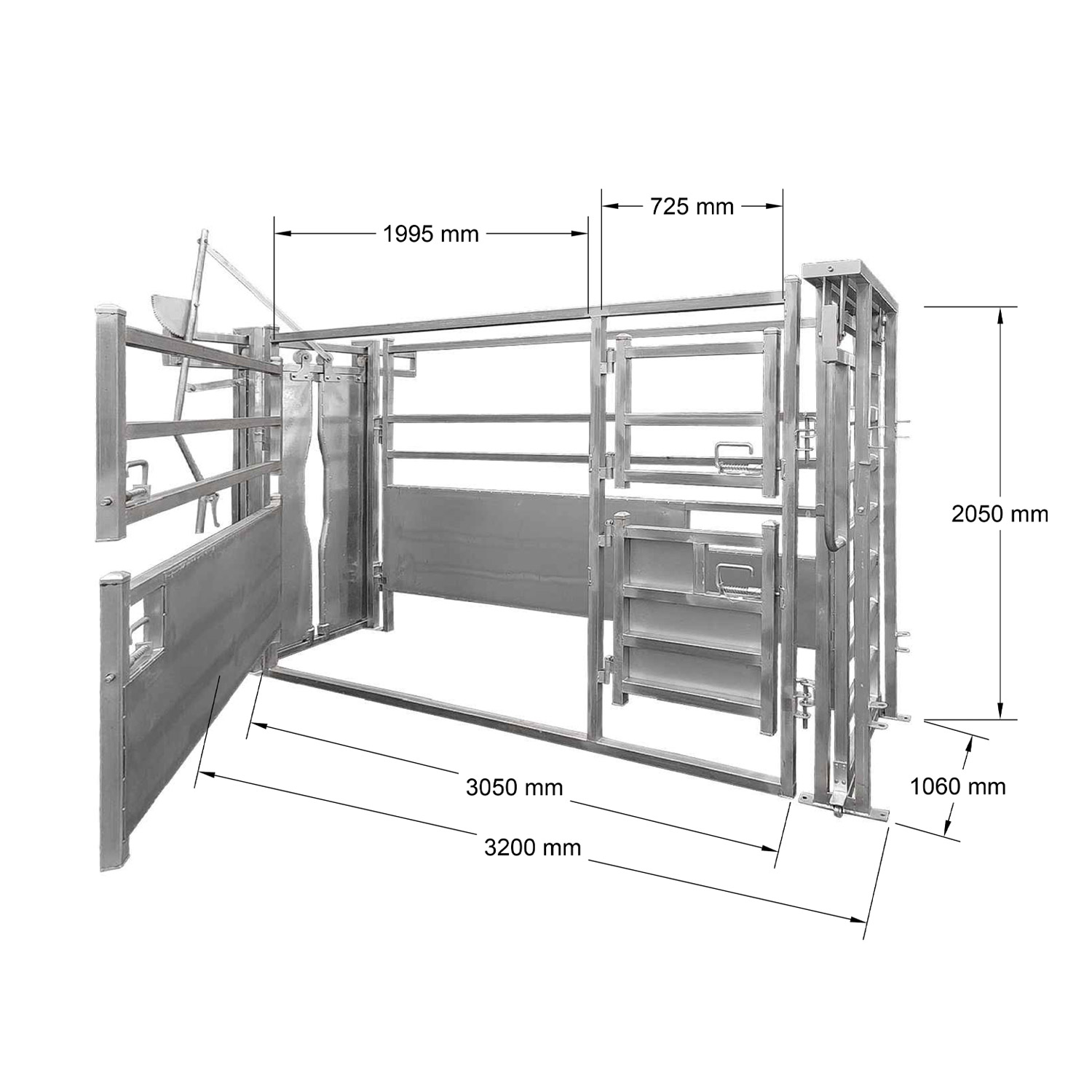

• 3.2m L * 2m W * 2.3m H – Fully Open

• Manual Headbail
• Sliding Gate
• Vet Crush Side Panel
• Vet Crush Side Gate

Vet Crush Side Panel

• Cattle panel on one side
• Manufactured from galvanised steel and the welds painted
• Fully 360degree welded
• 2000mm high, 3050mm long.
• All the tubes are 50x50x2mm
• With 7 rails, 4 rails with galvanized sheet, 3 rails are not.
• Galvanized sheet is 1.0mm thick.
• With caps, lugs and pins
• Weight: 85kg

Vet Crush Side Gate Panel

• Cattle gate on the other side
• 2000mm high, 3050mm long.
• All the tubes are 50x50x2mm
• Total 4 doors, with spring latched lock
• Longer door, internal wide is 1995mm
• Smaller door, internal wide is 725mm
• With caps, lugs and pins
• Weight: 125kg
